| The TL3-RIntrinsically SafePrecision Reference Thermometer for Field and Laboratory |
| The TL3-R The Intrinsically Safe TL3-R is ThermoProbe's highest accuracy hand-held reference Thermometer. The TL3-R has been certified to the latest global standards for hazardous locations (Ex). |
| Available with Bluetooth connectivity, the TL3-R can be used in
applications where extreme accuracy is required. It is powered
with 2-AAA batteries providing excellent battery life. A large
display and easy to hold design makes the TL3-R convenient for
use as a reference in the lab or field. The rugged, weather resistant case and buttons are well suited for use in industrial
applications, even with gloves. The TL3-R precision circuitry
provides excellent temperature accuracy, battery life and
Bluetooth monitoring. |
| Through numerous distributors equipped for calibration and
repair, the TL3-R can be supported in many locations
throughout the world. |
| A one year warranty, protective case and NIST traceable
5 point calibration report are included. |
| Temperature: |
Accuracy +/-0.05°F (0.03°C)
-over standard calibrated range
Standard 5 point calibration: -4°F(-20°C), 32°F(0°C) ,
120°F(49°C), 199°F(93°C) & 300°F(149°C)
Resolution: 0.001 Degrees
Range: -40°F to 400°F (-40°C to 204°C)
-Note: Standard calibration does not provide
full range accuracy
Custom calibration points and ranges available.
Temperature time constant:
10 seconds in circulated water bath
(time response to 63.2% of temp. step change)
Recommended minimum immersion depth: 4" (10.2cm) |
| Interface Features: |
0.5" (12.7mm) character LCD
Switchable units °C or °F
Resolution 0.01 or 0.001
Bluetooth Wireless Transmitter
Low Battery & Fault indication
Zero Correction Mode
Continuous operation or Auto Off after 20 minutes.
Stores and displays Average, Lowest & Highest readings.
Arrows indicating increasing/decreasing temperature.
Recommended ambient temperature range: 32°F to 112°F
(0°C to 44°C) |
| Construction: |
Weather Resistant Enclosure
Stainless steel RTD temperature sensor
- 100Ω Precision wire wound platinum RTD
- Standard 8"(20cm) or 12"(30cm) lengths
- Standard 0.25"(6.35mm) diameter
Static-dissipative plastic housing with a durable
polyester graphics window.
Nominal body dimensions: 5 x 1.75 x 1.15"
(13 x 4.4 x 2.9cm)
Nominal weight: 5.5 oz (156 grams) |
 |
|
| Battery: |
2 AAA Duracell MN2400
Over 450 hours service life at 70°F (21°C)
Ambient temperature operating range -4°F to 130°F
(-20°C to 54°C)
Note: Battery may not provide adequate power if used
outside operating range |
|
Portable: |
✔ |
NIST Traceable: |
✔ |
Certified Intrinsically Safe (Zone 0): |
✔ |
Extended Battery Life: |
✔ |
Temperature: |
✔ |
Weather Resistant: |
✔ |
Bluetooth: |
✔ |
Display Resolution: |
0.001 |
Tolerance: |
0.05° F (0.03°C) |
Uncertainty: |
0.03°F (0.017°C) |
Hazardous Location Marking: |
ATEX & IECEx (Ex ia IIC T4) |
Battery service life (Hours): |
450 |
Temperature Range: |
-40°F to 400°F (-40°C to 204°C) |
Calibrated Temperature Range: |
-30°F to 320°F (-36°C to 160°C) |
Calibration (See Note): |
5 Points Standard:
-4°F (-20°C), 32°F (0°C), 120°F
(48.9°C), 200°F (93.3°C),
300°F (148.9°C) |
Batteries: |
2- Alkaline AAA |
Ambient Range of Operation: |
-4° to 104° F (-20° to 40° C) |
Temperature Response: |
10 seconds in water bath |
Sensor: |
1/4" diameter Stainless steel sensor
tube, 100 Ohm Wire-wound
Platinum RTD |
Enclosure construction: |
Static Dissipatative Plastic - EX rated |
Weight (with 8" sensor): |
5.5 oz (156 g) |

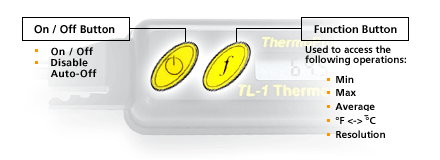

Operational Features: |
Auto off or continuous operation,
Min, Max and Average readings,
Display in C or F,
Thousandths display resolution, Zero
Correction, Bluetooth |
|
|
|
| Distillations, temperature baths, melting point tests, flash point tests, reference, thermowells, provers, temperature calibration for coriolis flow meters. |
|
|
|
|
